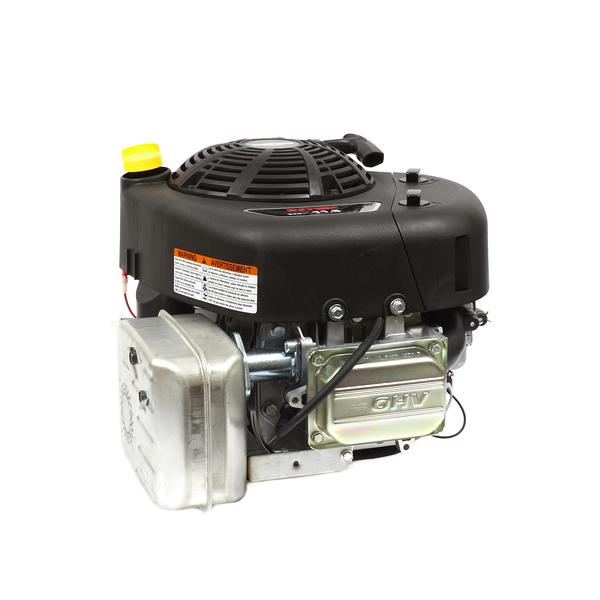

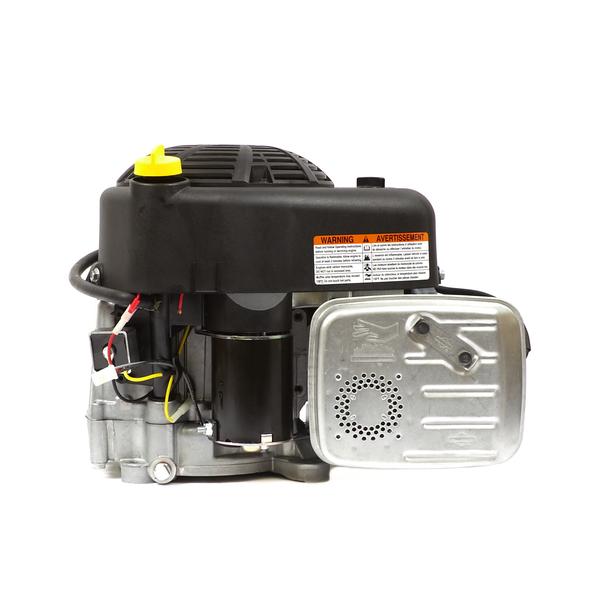

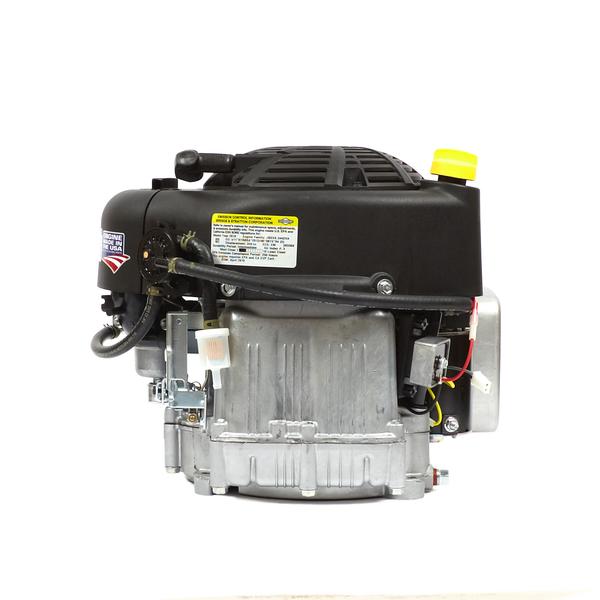

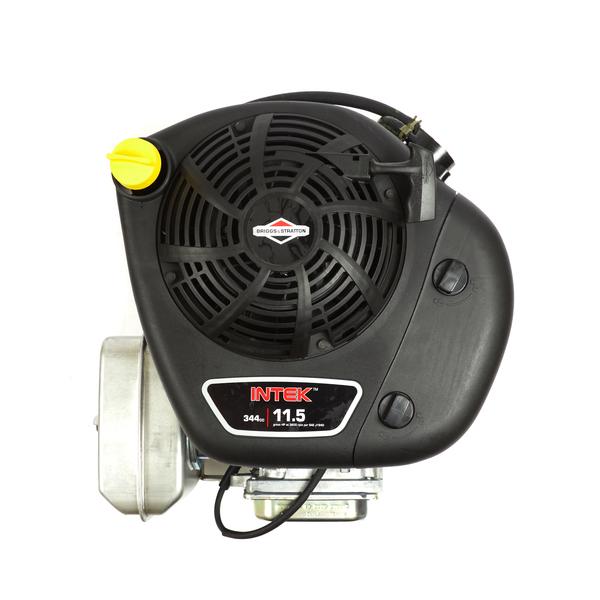

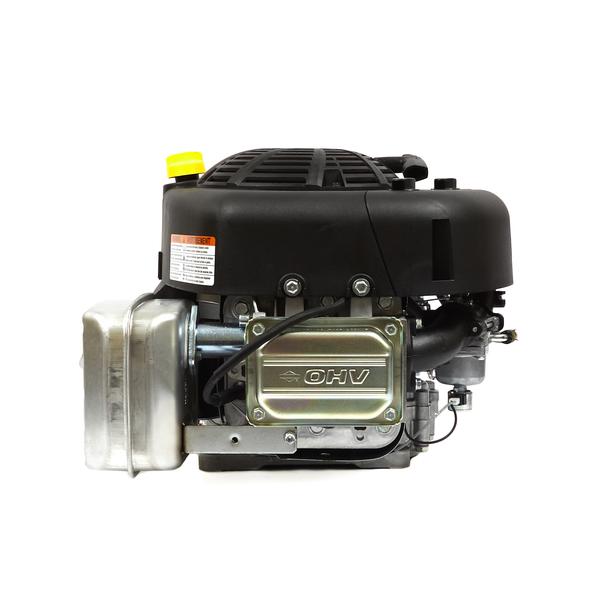

11.5 hp, 344cc, Electric Start with Pull Start Backup, Briggs & Stratton Intek, 21R807-0072-G1, Free Shipping, No Tax
Good replacement for 217907-3019-G5, 28B707-1153-E1, 21R707-0047-G1, 28R707-1116-E1
Replaces: 219807-3210-B1, 219907-0011-G5, 219907-0131-B1, 219907-0131-E1, 219907-3026-G5, 219907-3029-G5, 21A907-0124-E1, 21B807-0296-E1, 21B807-0326-E1, 21R707-0011-G1, 286707-0420-01
Sander & Salt Spreader Applications
- Briggs & Stratton single cylinder engine offers dependable power for your equipment needs.
- With a power rating of 11.5 horsepower
- Premium Dual Clean air filtration system.
- Electric with recoil backup starter.
- Maintenance-free Magnetron electronic ignition.
- Manufacturer limited warranty of 2 years consumer use / 1 year commercial use.
- Dura-Bore cast iron cylinder sleeve for extended life.
- Includes an installed muffler.
- Includes a fuel pump.
- 9 amp charging system.
- Crankshaft: 1 in. Dia x 3-5/32 in. Long, 1/4 in. keyway, tapped 7/16-20 in.
To add fuel tank use 799111 fuel tank & 2 x 790560 studs & 2 x 790561 nuts.
| Air Cleaner Type |
Pleated Paper With Foam Pre-Cleaner |
| Application |
Riding Lawn Mower |
| Application |
General Vertical Shaft Utility |
| Auto Compression Release |
Yes |
| Auxilary PTO |
No |
| Bearing Type (PTO Side) |
Plain |
| Throttle Control |
Remote |
| Oil Filter |
No |
| Single UPC |
047282017517 |
| Country of Origin |
US |
| Oil Capacity (oz.) |
48 |
| Max. RPM |
3300 |
| Oil Cooler |
No |
| Muffler Included |
Yes |
| Ship Weight (lbs.) |
79.90 |
| Start Type |
Electric w/recoil backup |
| Fuel Type |
Gasoline |
| Governor System |
Mechanical |
| Ignition System |
Electronic |
| Low Oil Alert |
No |
| Limited Warranty |
2 Years Consumer, 1 Year Commercial |
| Lubrication System |
Splash |
| EPA/CARB Approval (California Air Resource Board) |
Yes |
| Flywheel Brake |
No |
| Flywheel Type |
Standard |
| Fuel Filter |
Yes |
| Fuel Pump |
Yes |
| Fuel Tank Included |
No |
| Crankshaft Output |
Vertical |
| Crankshaft Rotation (From PTO Shaft Side) |
Counter Clockwise (Clockwise from rewind side) |
| Cylinder Bore Type |
Cast Iron Sleeve |
| Cylinders (qty.) |
1 |
| Engine Displacement |
344cc |
| Engine Series |
Intek |
| Color |
Red |
| Cooling System |
Air |
| Crankshaft |
Straight |
| Crankshaft Diameter (in.) |
1 |
| Crankshaft End Tapped Size |
7/16-20 |
| Crankshaft Length (in.) |
3-5/23 |
| Bolt Circle (in.) |
10 |
| Bore x Stroke (in.) |
3.44 x 2.26 |
| Carbureted |
Yes |
| Carburetor |
Float |
| Choke Control |
Choke-A-Matic |
| Charging System |
9 amp DC |
| HP** (gross) |
13.50 |
| Engine Displacement (cc) |
500 |
| Number of Cylinders |
Single |
| Engine Configuration |
Vertical Shaft |
| Engine Technology |
OHV |
| Length (in) |
18.9 |
| Width (in) |
15.5 |
| Height (in) |
12.9 |
| Weight (lbs) |
65.0 |
| Bore (in) |
3.56 |
| Stroke (in) |
3.06 |
| Engine Fuel |
Gasoline |
| Fuel Tank Capacity (gallons) |
N/A |
| Lubrication System |
Pressure Lubrication |
| Oil Capacity (oz) |
48 |
| Oil Filter |
Standard |
| Starter |
Electric Start |
| Air Filter |
Cartridge Air Cleaner with Advanced Debris Management |
| Muffler |
Lo-Tone or Super Lo-Tone |
| Fuel Shutoff Valve |
Optional |
| Certified Power Rating |
|
*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
- Model: 21R807-0072-G1
- UPC: 047282017517
- Shipping Weight: 80lbs
- Manufactured by: Briggs-Stratton
