19 hp, 540cc, 33S877-0019-G1 Briggs & Stratton Engine, Free Shipping, No Tax, Crankshaft: 1 in. Dia x 3-5/32 in. Long, 1/4 in. keyway, tapped 7/16-20 in. Previously rated as 21 hp.
Replaces: 284H77-0119-E1, 286H77-0122-E1, 286H77-0165-E1, 31F707-0112-E1, 31L777-0136, 31P677-0113-E1, 31P677-0125-G5, 31P677-0130-E1, 31P677-0134-G1, 31P677-0140-B1, 31P677-0144-B1, 31P677-0144-B3, 31P677-0236-G1, 31P677-0804-B1, 31P677-0832-B1, 31P677-0912-G5, 31P707-0123-E1, 31P777-0348-E1, 31N707-3026, 31N807-0440-E1, 31P677-0132-B1, 31p777-0296-E1, 31P777-0367-E1, 31Q677-0124-B1, 31S977-0005-G1 , 31P977-0635-E1, 31P977-0670-E1, 31Q677-0123-B1, 331777-0946-B2, 331777-0956-B1, 331777-1372-B1, 331777-1372-B2, 331777-2372-G5, 331877-0036, 331877-0113-B1, 331877-0142-B1, 331877-0805-E1, 331877-0869-G5, 331877-1234-B1, 331877-1371-B1, 331877-2118-G5, 331877-2371-G5, 331877-2794-G5, 331877-3036, 331877-4449-G5, 331977-0001-G1, 33M777-2116-G5, 33M777-3036-G5, 33M877-0036, 33M977-0001-G1, 33R777-0003-G1, 33R877-0002-G1, 33R877-0003-G1, 33R877-0004-G1, 33R877-0007-G1, 33R877-0008-G1, 33R877-0009-G1, 33R877-0020-G1, 33R877-0027-G1, 33R877-0029-G1, 917.276810, John Deere L100, LA125, Z225 and Toro Timecutter many other makes & models.

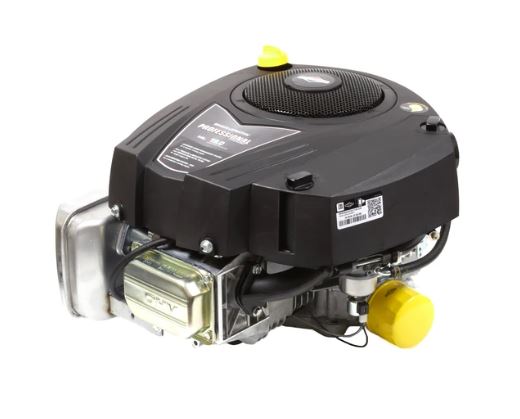

This genuine Professional series 540cc Briggs & Stratton single cylinder engine offers dependable power for your equipment needs. With a power rating of 19 horsepower, this engine features a premium Dual Clean air filtration system, electric starter, and maintenance-free Magnetron electronic ignition. With a manufacturer limited warranty of 2 years consumer use / 1 year commercial use, Briggs & Stratton provides power that you can trust. This engine includes a Dura-Bore cast iron cylinder sleeve for extended life. This engine includes a fuel pump. This engine includes an oil filter. This engine includes a 9 amp charging system.
9 amp charging system, includes 6 pin connector
Full pressure lubrication with oil filter
Pulse Fuel Pump
Overhead valve design (OHV) for cooler operation and long valve life
Dura-Bore cast iron cylinder sleeve for extended life
Application
Riding Lawn Mower
Air Cleaner Type
Pleated Paper With Foam Pre-Cleaner
Auto Compression Release
Yes
Auxilary PTO
No
Bore x Stroke (in.)
3.70 x 3.06
Bearing Type (PTO Side)
Plain
Part Dimensions Height (in)
15
Package Dimensions Length (in)
23
Package Dimensions Width (in)
21
Package Dimensions Height (in)
20
Part Dimensions Length (in)
18.5
Part Dimensions Width (in)
16
Single UPC
047282017548
Country of Origin
US
Package Type
Cardboard Box
Part Material Type
Multiple Material
Ship Weight (lbs.)
77
Throttle Control
Remote
Max. RPM
3300
Oil Capacity (oz.)
48
Oil Cooler
No
Oil Filter
Yes
Muffler Included
Yes
Start Type
Electric
Governor System
Mechanical
Ignition System
Electronic
Limited Warranty
2 Years Consumer, 1 Year Commercial
Low Oil Alert
No
Low Oil Shutdown
No
Lubrication System
Pressure
Flywheel Brake
No
Flywheel Type
Heavy
Fuel Filter
Yes
Fuel Pump
Yes
Fuel Tank Included
No
Fuel Type
Gasoline
Crankshaft Rotation (From PTO Shaft Side)
Counter Clockwise
Cylinder Bore Type
Cast Iron Sleeve
Cylinders (qty.)
1
Engine Displacement
540cc
Engine Series
Professional
EPA/CARB Approval (California Air Resource Board)
Yes
Cooling System
Air
Crankshaft
Straight
Crankshaft Diameter (in.)
1
Crankshaft End Tapped Size
7/16-20
Crankshaft Length (in.)
3-5/32
Crankshaft Output
Vertical
Carbureted
Yes
Carburetor
Float
Bolt Circle (in.)
10
Charging System
9 Amp
Choke Control
Choke-A-Matic
