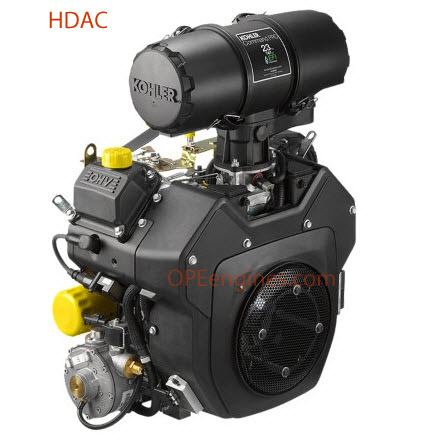

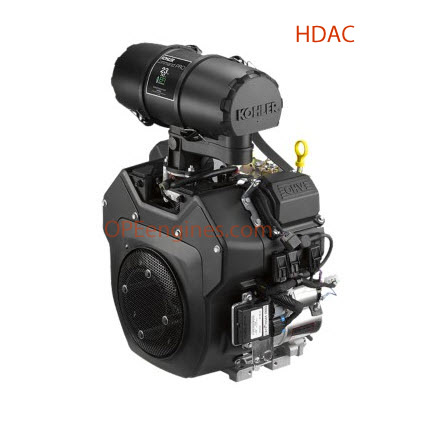

Kohler Engine PCH680-3002 Command Pro 23 hp 747cc EFI Propane Basic
Model Features:
• High Efficiency Overhead Valve Design
• Zero Maintenance Hydraulic Valvetrain
• Cast-Iron Cylinder Liners
• High Efficiency, Low-Noise Cooling Fan
• Full Pressure Lubrication System to all Bearings
• Hardened, Micro-Polished, Dynamic-Balanced Crankshaft
• Variable Speed Governor
• Easy-to-Identify Yellow Oil Service Points for Valve Cover Oil Fill and Dipstick
• International Emissions Certifications
• 3 year Unlimited Hour Commercial Warranty
• Kohler Closed-Loop Electronic Fuel Injection (EFI) for Propane Fuel
• Drop-in-Place Design
Engine-Mounted Electronic Control Unit (ECU)
Engine-Mounted Propane Fuel Pressure Regulator for Vapor Withdrawal
• Easy Start with 12V High Energy Electronic Ignition and High Torque Solenoid Shift Starter
• High Capacity In-Line Fuel Filter
• 20 Amp Regulated Charging System
• High Capacity PTO Sleeve Bearing (2000 in-lbs Side Load Capacity)
• PTO Mounting Face
5.625" (143 mm) Diameter (4 Holes) 3/8-16 UNC-2B x 0.67" (17 mm) Deep o 7.75" (197 mm) Diameter
(4 Holes) 7/16-14 UNC-2B x 0.83" (21 mm) Deep o 7.00" (178 mm) Pilot Diameter
• 3800 rpm high idle setting, 1500 rpm low idle setting
• Closed-Loop Oxygen Sensor Included
• Heavy Duty, Dual-Element CanisterAir Cleaner System (HDAC)
• Wirring Harness is 24176237
• Engine-Mounted Keyswitch and Throttle Controls
• Crankshaft PTO
1.437" (36.5 mm) Diameter x 4.457" (113.2 mm) PTO Length
0.375" (9.5 mm) Keyway
Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF-2B
User-Friendly Maintenance.
- Easy access to all routine maintenance points.
- EFI diagnostic software provides a quick diagnosis to help detect and fix problems if they occur.
Easy Dependable Starts.
- No choke, no carburetor - starts just like your car.
Increased Efficiency.
- Closed-loop electronic fuel injection
- Automatically optimizes for fuel grade, fuel quality and altitude
- Produces over 50% fewer hydrocarbon emissions than a typical carbureted engine, helping to reduce smog formation (KOHLER PCV740 engine vs. a KOHLER CV742 carbureted gasoline engine)
High Power Performance.
- Closed-loop electronic fuel injection.
- Automatically optimizes for fuel grade, fuel quality and altitude.
Lowest Operating Cost.
- Saves you up to $1200 a year on fuel (KOHLER PCV740 engine vs. a similarly sized KOHLER carbureted gasoline engine; annual savings assume 600 hours/year of operation)
Engine Type:
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block, electronic fuel injection
Model
|
Command PRO® EFI Propane PCH680
|
| J1940 Power hp(kW) 1 |
23 (17.1) |
| Displacement cu in (cc) |
45 (747) |
| Bore in (mm) |
3.3 (83) |
| Stroke in (mm) |
2.7 (69) |
| Peak Torque lbs. ft (Nm) |
38 (51.5) |
| Compression Ratio |
9.1:1 |
| Dry Weight lbs (kg) |
108 (49) |
| Oil Capacity U.S. quarts (L) |
2 (1.9) |
| Lubrication |
Full pressure w/full-flow filter |
| Dimensions L x W x H in |
14.8 x 18.9 x 24.5 |
| Backpressure Limit 2 |
50 |
| J1995 Power hp (kW) 3 |
22.4 (16.7) |
| J1995 Rated Speed (RPM) |
3600 |
* Length is front to rear of engine. Width is valve cover to valve cover. Height is mounting surface to top of air cleaner.
1 Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.
2 Inches of H20 @ 3600 RPM WOT
3 J1995 power and torque certified by 3rd Party Witness
- Model: PAPCH680-3002
- Shipping Weight: 116lbs
- Manufactured by: Kohler
