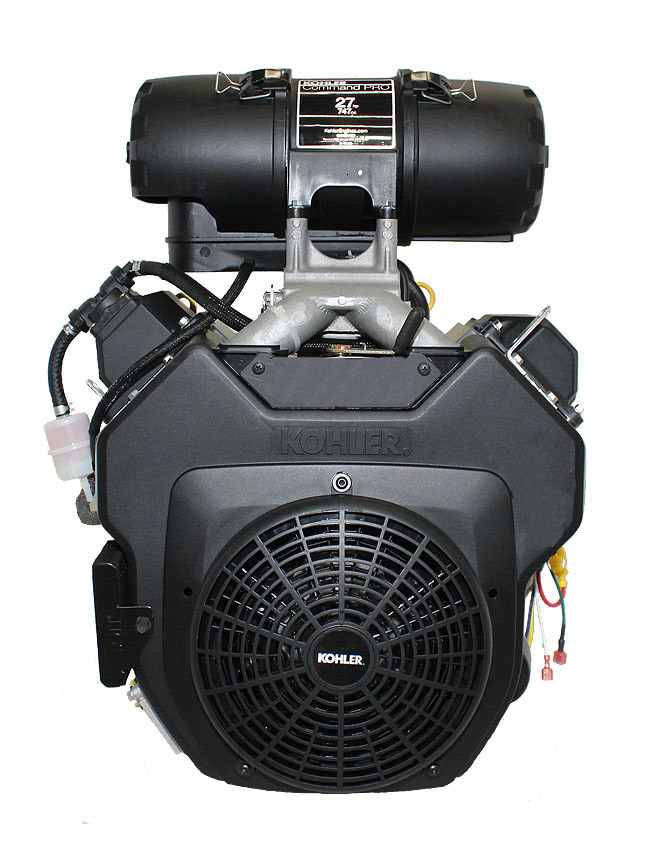

Kohler Engine CH752-3100 27 hp Command Pro 747cc 1 7/16 W/O Panel

$2821.00

Always Free Shipping
Add Qty:

Description

27 hp, 747cc, Kohler Command Pro Engine, CH752-3100, Twin Barrel Carb, 1 7/16 Crank, Free Shipping, No Tax.

Replaces Old Kohler Spec# CH750-0004, CH750-0009, CH750-3009.

Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Digital Spark Advance System
  • Cast-Iron Cylinder Liners
  • PTO Thrust Bearing (Side Load)
  • Electronic Ignition
  • Heavy Duty Canister Air Cleaner System
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Fixed Grass Screen Guard
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Engine Mounted Oil-Cooler
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry (Switch Installed and Wired but Unconnected)
  • Variable Speed Governor
  • Two-Barrel Carburetor
  • Fuel Shutdown Solenoid
  • Smart-Choke Carburetor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • 12 Volt Solenoid Shift Starter
  • 20 Amp Alternator, Regulated
  • 3yr Limited Warranty
  • No Control panel or Key Switch
  • Crankshaft 24014150, 1.437" (1 7/16", 36 mm) Diameter x 4.453" (113 mm) PTO Length,
  • 0.375" (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep,
  • 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
  • 7" (178 mm) Diameter Pilot

See Exhaust Systems
2478610S PTO Canister Muffler Kit-Center Outlet
2478611S PTO Canister Muffler Kit-Filter Side Outlet
2478612S PTO Canister Muffler Kit-Starter Side Outlet
2478619S Side Mount Muffler Kit-Starter Side
2478620S Side Mount Muffler Kit-Filter Side
2478621S Raised Body PTO Canister Kit-Filter Side Outlet
2478622S Raised Body PTO Canister Kit-Starter Side Outlet
