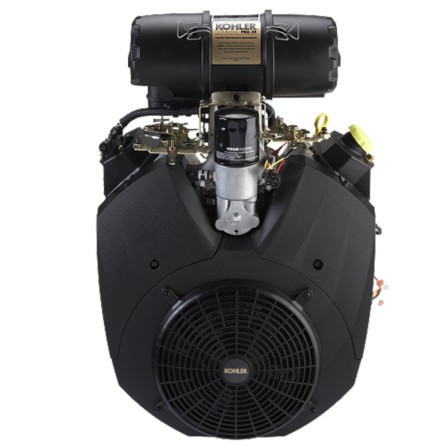

Kohler Engine CH940-3000 32.5 hp Command Pro 999cc Hdac 1 7/16 Crank

Name: Kohler Engine CH940-3000 32.5 hp Command Pro 999cc Hdac 1 7/16 Crank
Brand: Kohler
Price: 3486 USD
Availability: InStock

$3486.00

Add Qty:

Description

32.5 hp, 999cc, Kohler Engine Command Pro, CH940-3000, HDAC, Free Shipping, No Tax

Replaces Old Kohler Spec # CH940-0002, CH940-2002

Standard Features:

Crankshaft-1.437 in (1 7/16 in)(36 mm) Diameter x 4.453 in (113 mm) PTO Length, 0.375 in (9.5 mm) Keyway, Drilled and Tapped 1.5 in (38 mm) Deep, 5/8-18 UNF
PTO Face-5.625 in (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 in (17 mm) Deep, 7.75 in (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 in (21 mm) Deep
7 in (178 mm) Diameter Pilot
Overhead Valve Design
Hydraulic Valve Lifters
Nylon Cam Gear
Cast-iron Cylinder Liners
Stellite Exhaust Valves
Flywheel and PTO Sleeve Bearing
Electronic Ignition
High-Performance Spark Plugs RFI and EMC Compliant
Full Pressure Lubrication
Top Mounted Spin On Large Capacity Oil Filter
Large Dual Oil Drains
Heavy-Duty Canister Air Cleaner System
High-efficiency Fan and Screen
Fixed Grass Screen and Guard
Blower Housing with Removable Cylinder Access Covers
Easy Access Valve Covers
Oil Sentry
Solenoid Shift Starter (looking at the front of engine, starter is mounted on the right side)
Two Barrel Carburetor
Fuel Shut Down Solenoid
Smart Choke Carburetor
Mechanical Fuel Pump
25 Amp Alternator
Hardened Crank Shaft Journals
User-friendly Maintenance
3yr Limited Warranty
Remote Controls (for front mounted controls and key order kit below)

HP (kW) [1] 32.5(24.2)

Displacement (cc) 61 (999)

Bore in (mm) 3.5 (90)

Stroke in (mm) 3.1 (78.5)

Gross Torque ft lbs (Nm) [1] 53.5 (72.5)

Compression Ratio 8.8:1

Dry Weight lbs (kg) 132 (59)

Oil Capacity US qts (L) 2.1 (2)

Lubrication Full pressure w/full-flow filter

Dimensions LxWxH (in)* 15.3 x 19.0 x 27.5

Backpressure Limit [2] 40

Certified Power HP (kW) [3] 31.84 (23.74)

Certified RPM 3600

Emissions Compliance

EPA Phase III

Optional Accessories:

6237602S Engine Mounted Control Kit (Includes Key Switch, Panel, Oil Sentry Light, Decal, Knobs, Brackets, and Screws)

6278601S Exhaust Muffler Kit Center Outlet (Discharges straight out the back if facing the front of engine).
6278602S Exhaust Muffler Kit Starter Side Outlet (Discharges to the right if facing the front of engine).
6278603S Exhaust Muffler Kit Opposite Starter Side (Discharges to the left if facing the front of engine).
