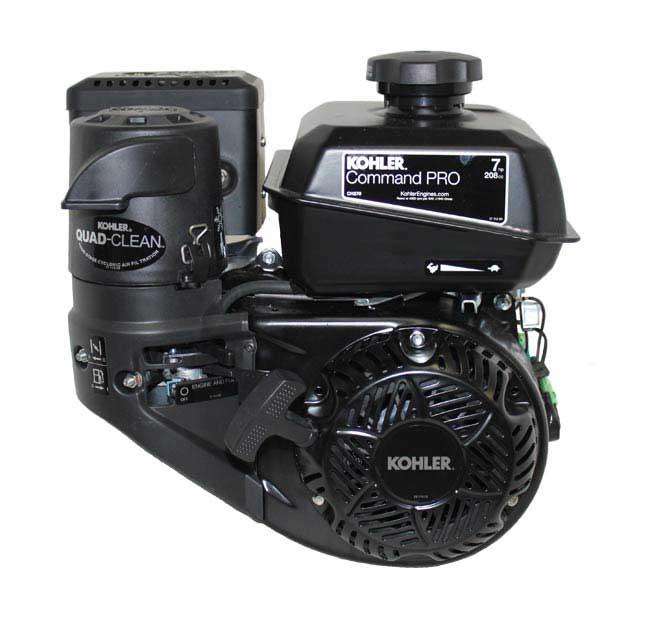

Kohler Engine CH270-3152 7 hp Command Pro 208cc 3/4 in. Crankshaft

$600.00

Always Free Shipping
Add Qty:

Description

7 hp, Kohler Engine Command Pro, CH270-3152, 208cc, 3/4" Crankshaft, Good replacement for Troy Bilt Tiller Pony and Horse models, Free Shipping, No Tax.
Replaces CH270-0011

Overhead Valve Design, Dual Ball Bearings, Cast-Iron Cylinder Bore, Electronic Ignition, Quad-Clean 4-Stage Heavy-Duty Cyclonic Air Cleaner-

  • No Tools Required All Season Air Cleaner
  • Interference Free PTO Face
  • High-inertia Flywheel
  • Stellite Faced Exhaust Valve
  • Water Trap to Separate Moisture in Fuel
  • Dual Oil Fills and Drains
  • Steel-forged crankshaft
  • Automatic compression release
  • Oil Sentry Automatic Low Oil Engine Shutdown System
  • Mechanical Governor
  • Carburetor Bowl Drain
  • Large metal fuel tank and chrome plated cap
  • Warm air intake system for cold weather operation
  • Indexable, Eazy Pull Retractable Starter
  • Oversized Muffler with Heat Shield
  • Easy Access Throttle, Choke and Shutoff

Crankshaft-3/4" 0.75" (19.05 mm) Diameter x 2.42" (61.47 mm) PTO Length, 3/16" (4.7 mm) Keyway,
 Drilled and Tapped   0.67 in (17.01 mm) Deep, 5/16-24 UNF,
PTO Face-3.625" (92.08 mm) Diameter, (4 Holes) 5/16-24 UNF-2B Thread 0.55 in (13.97 mm) Deep,

3yr Warranty

Specs

Engine type

4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block

Model Command PRO CH270
HP (kW) 1 7(5.2)
Displacement (cc) 12.7 (208)
Bore in (mm) 2.8 (70)
Stroke in (mm) 2.1 (54)
Gross Torque ft lbs (Nm) 1 10.5 (14.2)
Compression Ratio 8.5:1
Dry Weight lbs (kg) 38.7 (17.5)
Oil Capacity US qts (L) 0.63 (0.6)
Lubrication Splash
Dimensions LxWxH (in)* 12.7 x 15.2 x 14.2
Backpressure Limit 2 30
Certified Power HP (kW) 3 6.6 (4.9)
Certified RPM 4000
Engine Type Commercial
  • Model: PACH270-3152
  • UPC: 885612358271
  • Shipping Weight: 48lbs
  • Manufactured by: Kohler
