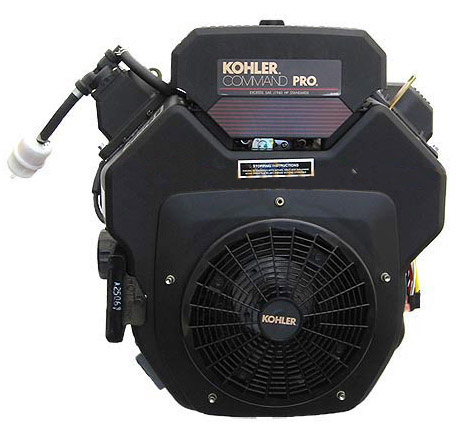

Kohler Engine CH730-3010 23.5 hp Command Pro 725cc 1 7/16 CS

$2300.00

Always Free Shipping
Add Qty:

Description

23.5 hp Kohler Command Pro Basic CH730-3010 725cc, 1 7/16" x 4 1/2" Crankshaft, Free Shipping, No Tax, Replaces Old Kohler Engine Spec# CH25 68500, CH730-0038, CH730-3038, CH730-3208, CH730-3004

This engine was rate as 25 hp but with new rating system it is now rated as 23.5 hp, it is still a 725cc engine.

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Engine Mounted Oil Cooler
  • Cast-Iron Cylinder Liners
  • PTO Sleeve Bearing (Side Load)
  • Electronic Ignition
  • Large Capacity Dual Element Air Cleaner
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Oil Level Dipstick-Yellow
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry (Switch Installed and Wired but Unconnected)
  • Variable Speed Governor
  • High Performance Accelerator Pump Carburetor
  • Fuel Shutdown Solenoid, Smart-Choke Carburetor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • No Key, No Control Panel
  • 12 Volt Solenoid Shift Starter
  • 20 Amp Alternator, Regulated
  • 3 Year Warranty
  • Crankshaft-1.437 inch (1 7/16 inch)(36 mm) Diameter x 4.453 inch (113 mm) PTO Length, 0.375 inch  (9.5 mm) Keyway, Drilled and Tapped 1.5 inch  (38 mm) Deep, 5/8-18 UNF
  • PTO Face-5.625 inch (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67 inch (17 mm) Deep, 7.75 inch (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83 inch (21 mm) Deep
  • 7 inch (178 mm) Diameter Pilot

See Exhaust Systems

  • 2478610S PTO Canister Muffler Kit-Center Outlet
  • 2478611S PTO Canister Muffler Kit-Filter Side Outlet
  • 2478612S PTO Canister Muffler Kit-Starter Side Outlet
  • 2478619S Side Mount Muffler Kit-Starter Side
  • 2478620S Side Mount Muffler Kit-Filter Side
  • 2478621S Raised Body PTO Canister Kit-Filter Side Outlet
  • 2478622S Raised Body PTO Canister Kit-Starter Side Outlet

Specs
