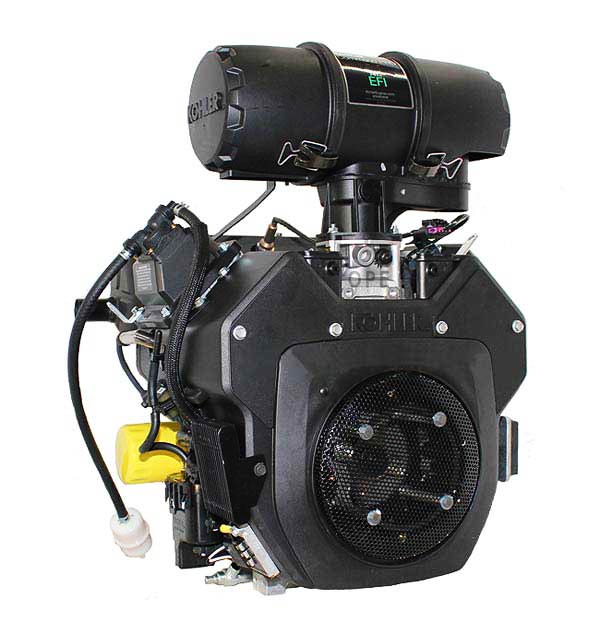

Kohler Engine ECH749-3056 26.5 hp Command Pro 747cc Efi 25 Amp Hdac

$3205.00

Always Free Shipping
Add Qty:

Description

26.5 hp Kohler Command Pro Electronic Fuel Injected (EFI) Engine, ECH749-3056, 747cc, Heavy Duty Air Cleaner (HDAC) 1 1/8" x 4" Crankshaft

Replaces Old Kohler Spec # ECH749-3005

Standard Features:

  • Crankshaft 1.125" (1 1/8")(28.5 mm) Diameter x 4.0" (102 mm) PTO Length, 0.25" (1/4) (9.5 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
  • PTO Face-5.625" (143 mm) Diameter, (4 Holes) 3/8-16 x 0.67" (17 mm) Deep, 7.75" (197 mm) Diameter, (4 Holes) 7/16-14 x 0.83" (21 mm) Deep
  • 7" (178 mm) Diameter Pilot
  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Cast-Iron Cylinder Liners
  • PTO Sleeve Bearing (Side Load)
  • Electronic Ignition
  • Large Capacity Dual Element Air Cleaner
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Oil Level Dipstick-Yellow
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry
  • Variable Speed Governor
  • Mechanical Fuel Pump
  • High Performance Spark Plugs
  • 12 Volt Solenoid Shift Starter
  • Fixed Grass Screen Guard
  • 25 Amp Alternator, Regulated
  • 3/16" Evaporative emissions connection
  • Includes Oxygen Sensor For Exhaust

Specs

  • Model: PAECH749-3056
  • UPC: 885612374905
  • Shipping Weight: 120lbs
  • Manufactured by: Kohler
