Kohler Part # 1275581S Cylinder Head Kit Cv Ch Single Cylinder

 $365.00$427.19
Save: 15% off

Always Free Shipping
Add Qty:

Description

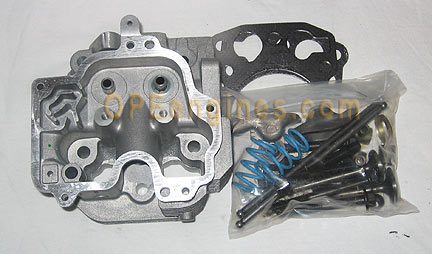

KOHLER CYLINDER HEAD KIT CV CH SINGLE CYLINDER 1275581-S

For just the head use 1231819 S

Replaces: 1231801, 1231802, 1231803, 1231806, 1231808, 1231810, 1231814, 1275502, 1275551, 1275552, 1275558, 1275560, 1275562, 1275563

Kit Includes:
Description Qnty Description
235011-S 1 RETAINER, SPRING
12 016 01-S 1 VALVE, EXHAUST
12 017 01-S 1 VALVE, INTAKE
12 041 01-S 2 GASKET, CARBURETOR
12 041 02-S 1 GASKET, AIR CLEANER BASE
12 041 03-S 1 GASKET, EXHAUST MANIFOLD
12 041 08-S 1 GASKET, CYLINDER HEAD
12 041 10-S 1 GASKET, CYLINDER HEAD
12 755 03-S 4 KIT, RETAINER
12 086 16-S 1 SCREW,  FLG M10X1.5X90
12 089 34-S 2 SPRING, VALVE
12 112 13-S 1 SPACER, HEAD BOLT EXHAUST PORT
12 173 01-S 1 CAP, VALVE SPRING
12 318 19-S 1 KIT, HEAD, CYLINDER
12 411 04-S 2 ROD, PUSH
12 468 05-S 1 WASHER, FLAT 13/32"
12 599 03-S 2 PIVOT, ROCKER ARM
20 086 02-S 5 SCREW, FLG M10X1.5X80
25 139 60-S 1 PLUG,  CTSK PIPE 1/8"
25 186 01-S 2 ARM, ROCKER
66 032 05-S 2 SEAL, VALVE STEM
M-640034-S 2 SCREW, FLG M6X1.0X34
TT-439-A

Specs

  • Model: 1275581S
  • UPC: 87206436802
  • Shipping Weight: 6lbs
  • Manufactured by: Kohler
