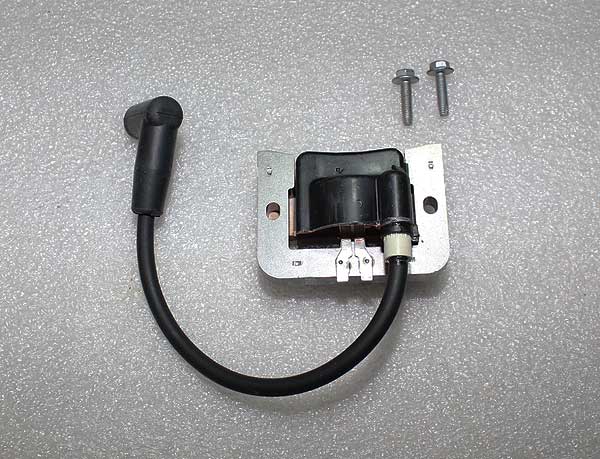

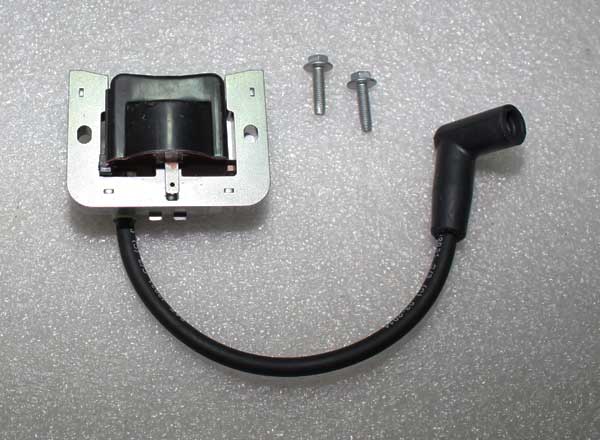

Kohler Part # 24584201S Ignition Module (CDI Fixed)

 $78.00$92.17
Save: 15% off

Always Free Shipping
Add Qty:

Description

Genuine Kohler Ignition Module, 24 584 201-S, Free Shipping, No Tax. Replaces 2458401, 2458445, 2458445-S, 24 584 45-S, 2858402, 3258401, 6658410.

This system uses a capacitive discharge (CD Fixed) coil and does not require battery voltage to work. You will notice only 1 terminal connection on module. This terminal is the kill wire which grounds out the spark. Ignition timing and spark remains constant regardless of engine speed. Timing of spark is controlled by location of flywheel magnet group as referenced to engine Top DeadCenter (TDC). Module Air Gap 0.28/0.33 mm (0.011/0.013 in.)

A typical fixed ignition system consists of:

  • 1 magnet assembly which is permanently affixed to flywheel.
  • 2 electronic capacitive-discharge ignition modules which mount on engine crankcase.
  • 1 kill switch (or key switch) which grounds modules to stop engine.
  • 2 spark plugs.

    Both ignition modules should be replaced when servicing. Best practice when replacing ignition modules in the field is to ensure that the ignition module part numbers are matching on the same engine. If there is a superseding part number both modules should always be replaced.




Specs

  • Model: 24584201S
  • UPC: 885612848826
  • Shipping Weight: 0.9lbs
  • Manufactured by: Kohler
