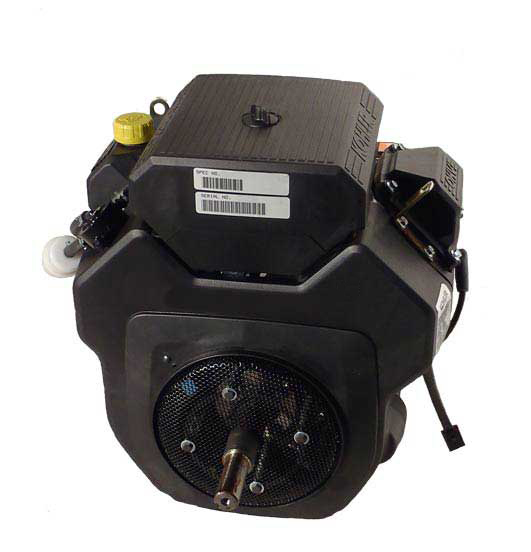

Kohler Engine CH730-3214 23.5 hp Command Pro 725cc Toro Dingo TX425

$2563.00

Always Free Shipping
Add Qty:

Description

23.5 hp,  Kohler Engine Command Pro, 725cc, Fits Toro Dingo TX425 Skid CH730-3214, Free Shipping, No Tax.

Replaces Old Kohler Engine Spec# 68688, CH730-0072, CH730-0132, CH730-0162

This engine was rate as 25 hp but with new rating system it is now rated as 23.5 hp
It's still a 725cc engine.

Can replace a CH640-3155 Less Hp 20.5

Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Cast-Iron Cylinder Liners
  • Electronic Ignition
  • Low Profile Dual Element Air Cleaner (LPAC)
  • High Efficiency Grass Screen and Fan
  • Closed Breather System
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Easy Access Valve Cover Oil Fill-Yellow
  • Oil Level Dipstick-Yellow
  • Large Capacity Oil Filter, Dual Oil Drain
  • Oil Sentry (Switch Installed and Wired but Unconnected)
  • Oil Cooler
  • Variable Speed Governor
  • Fuel Shutdown Solenoid, Smart-Choke Carburetor
  • Pulse Fuel Pump
  • 12 Volt Solenoid Shift Starter
  • 15/20 Amp Alternator, Regulated
  • Front PTO Shaft 2414413S
  • Wiring Harness 24176171S
  • 3 yr Warranty
  • Crankshaft 2401490, 24014389, 1" (25.375 mm) PTO Mtg Face to end of shaft 2" (50.6 mm), 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 3/8-24 UNF
