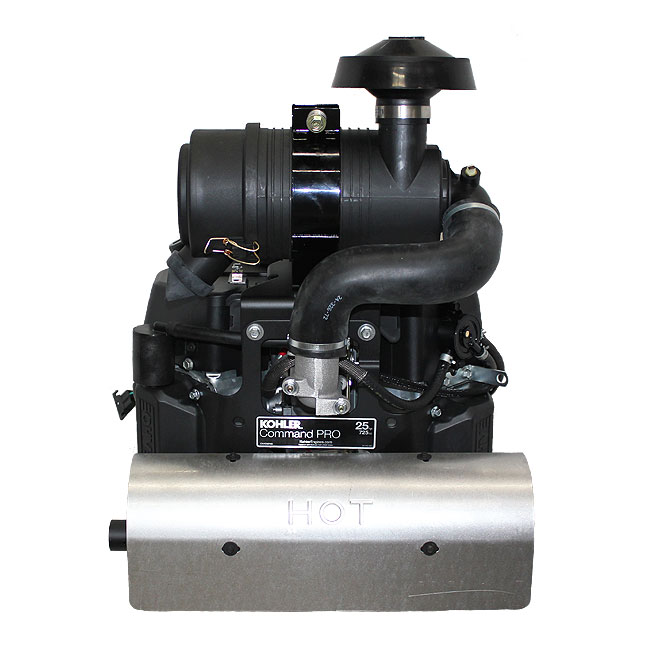

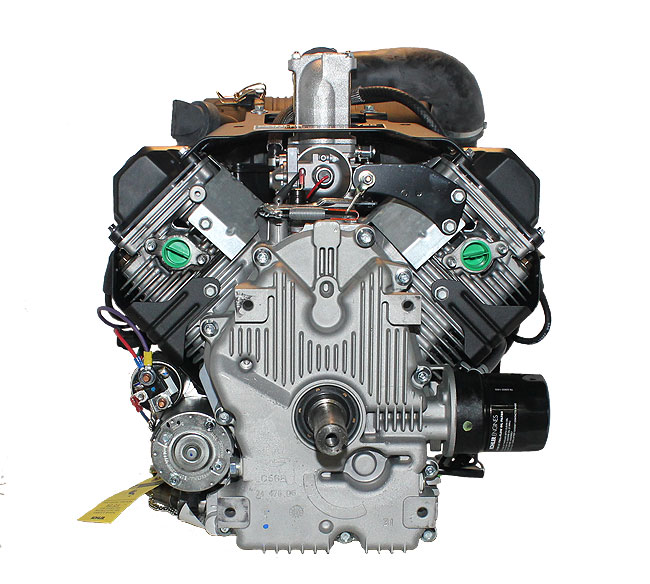

Kohler Engine CV680-3026 22.5 hp Command Pro 674cc Shivvers Country Clipper

23 HP KOHLER COMMAND CV680S SHIVVERS COUNTRY CLIPPER CV680-3026

Discontinued by Kohler, no longer available.

Replaces PA75623

Standard Features:

  • Overhead Valve Design
  • Hydraulic Valve Lifters
  • Electronic Ignition
  • Cast-Iron Cylinder Liners
  • Heavy Duty Canister Air Cleaner
  • Closed Breather System
  • High Efficiency Grass Screen and Fan
  • Stellite Exhaust Valves
  • Full Pressure Lubrication
  • Large Capacity In-Line Fuel Filter
  • Easy Access Fill Tube and Dipstick-Yellow
  • Large Capacity Oil Filter
  • Dual Oil Drain
  • Canister Muffler with Heat Shield, Oil Filter Side Outlet 2406808
  • Variable Speed Governor
  • Fuel Shutdown Solenoid
  • Pulse Fuel Pump
  • 12 Volt Solenoid Shift Starter
  • 15 Amp Alternator, Regulated
  • Wiring Harness 2417612
  • Crankshaft 24014365 (2401444) 1.125" (1 1/8 ") (28.5 mm) Diameter x 3 5/16 " (84.3 mm) PTO Length, 0.25" (6 mm) Keyway, Drilled and Tapped 1.5" (38 mm) Deep, 7/16-20 UNF
  • PTO Face-10" (254 mm) Diameter, 4 Through Holes, 0.36" (9 mm) Diameter




  • Model: PACV680-3026
  • Manufactured by: Kohler
